First look at the initScheduledTasks function of DiscoveryClient, you can see that there are two timed tasks, namely "service acquisition" and "service renewal".

private void initScheduledTasks() {

        if (clientConfig.shouldFetchRegistry()) {

            // registry cache refresh timer

            int registryFetchIntervalSeconds = clientConfig.getRegistryFetchIntervalSeconds();

            int expBackOffBound = clientConfig.getCacheRefreshExecutorExponentialBackOffBound();

            scheduler.schedule(

                    new TimedSupervisorTask(

                            "cacheRefresh",

                            scheduler,

                            cacheRefreshExecutor,

                            registryFetchIntervalSeconds,

                            TimeUnit.SECONDS,

                            expBackOffBound,

                            new CacheRefreshThread()

                    ),

                    registryFetchIntervalSeconds, TimeUnit.SECONDS);

        }

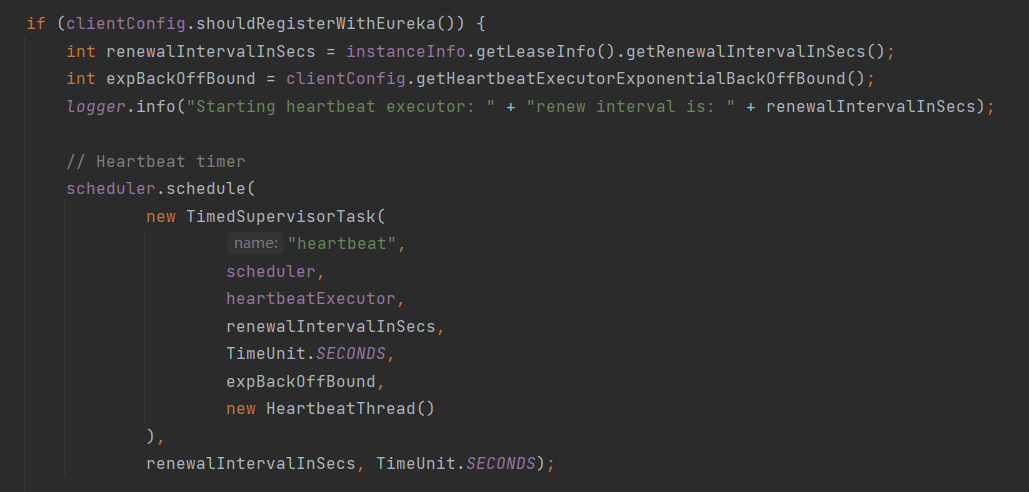

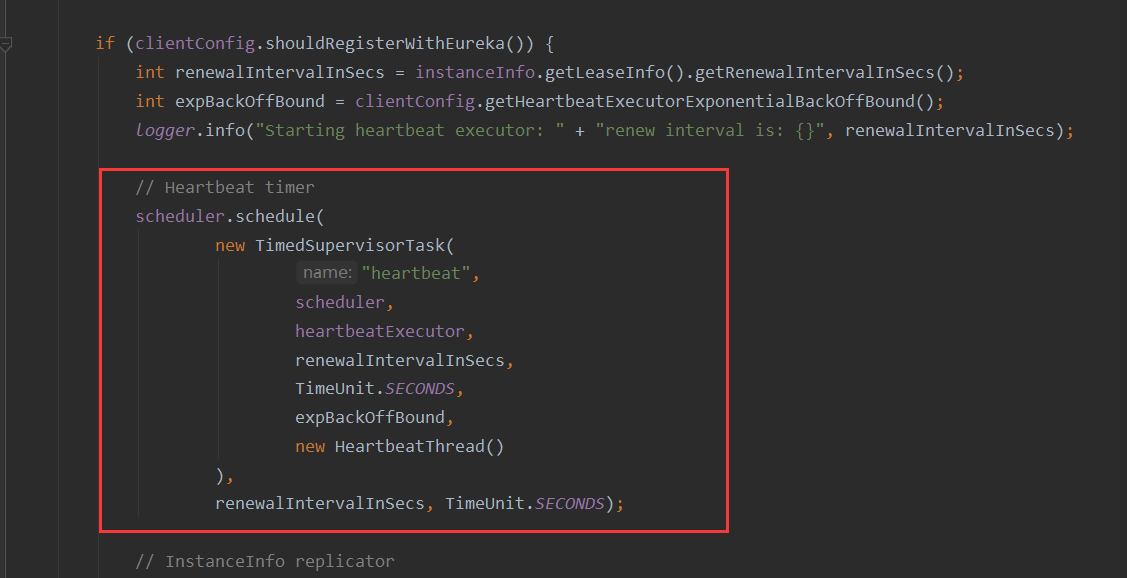

        if (clientConfig.shouldRegisterWithEureka()) {

            int renewalIntervalInSecs = instanceInfo.getLeaseInfo().getRenewalIntervalInSecs();

            int expBackOffBound = clientConfig.getHeartbeatExecutorExponentialBackOffBound();

            logger.info("Starting heartbeat executor: " + "renew interval is: {}", renewalIntervalInSecs);



            // Heartbeat timer

            scheduler.schedule(

                    new TimedSupervisorTask(

                            "heartbeat",

                            scheduler,

                            heartbeatExecutor,

                            renewalIntervalInSecs,

                            TimeUnit.SECONDS,

                            expBackOffBound,

                            new HeartbeatThread()

                    ),

                    renewalIntervalInSecs, TimeUnit.SECONDS);



            ...

    }

From the source code, it can be seen that the "service acquisition" task is more independent than the "service renewal" and "service registration" tasks. "Service renewal" and "service registration" are in the same if logic. This is not difficult to understand. After the service is registered with Eureka Server, it naturally needs a heartbeat to renew the contract to prevent it from being deleted, so they appear together. From the source code, we see more clearly the time control parameters related to service renewal mentioned earlier:

    public static final int DEFAULT_LEASE_RENEWAL_INTERVAL = 30;

    public static final int DEFAULT_LEASE_DURATION = 90;

The logic of "service acquisition" is in an independent if judgment, which is based on the eureka.client.fetch-registery = true parameter, which is true by default. In most cases, we do not need to care. In order to regularly update the client's service list to ensure that the client can access a truly healthy appendix example, the "service acquisition" request is not limited to service startup, but a scheduled task. From the source code, we can see that the task is running The registryFetchIntervalSeconds parameter corresponds to the eureka.client.reegistry-fetch-internal-seconds = 30 configuration parameter, which defaults to 30 seconds.

The implementation of "service renewal" is relatively simple. Renew the contract directly by REST request. The relevant codes are as follows:

boolean renew() {

        EurekaHttpResponse<InstanceInfo> httpResponse;

        try {

            httpResponse = eurekaTransport.registrationClient.sendHeartBeat(instanceInfo.getAppName(), instanceInfo.getId(), instanceInfo, null);

            logger.debug(PREFIX + "{} - Heartbeat status: {}", appPathIdentifier, httpResponse.getStatusCode());

            if (httpResponse.getStatusCode() == Status.NOT_FOUND.getStatusCode()) {

                REREGISTER_COUNTER.increment();

                logger.info(PREFIX + "{} - Re-registering apps/{}", appPathIdentifier, instanceInfo.getAppName());

                long timestamp = instanceInfo.setIsDirtyWithTime();

                boolean success = register();

                if (success) {

                    instanceInfo.unsetIsDirty(timestamp);

                }

                return success;

            }

            return httpResponse.getStatusCode() == Status.OK.getStatusCode();

        } catch (Throwable e) {

            logger.error(PREFIX + "{} - was unable to send heartbeat!", appPathIdentifier, e);

            return false;

        }

    }

The "service acquisition" is more complicated, and will initiate different REST requests and corresponding processing according to whether it is the first acquisition.
