[VCS version] [Mentor's example] UVM -based UART verification environment

tags: java  python  linux  Big Data  Programming language

I accidentally saw someone shared in the group beforeMentor GraphicsThe UVM verification environment code provided by provided UART contains the basic use of UVM and the advanced UVM register model. Share it here.

File description

agents/apb_agent - APB agent used in the UVM testbench
agents/uart_agent - UART agent user in the UVM testbench
agents/modem_agent - UART Modem interface agent, used in the UVM testbench
docs
protocol_monitor - contains an example APB protocol monitor
rtl - Contains the UART RTL source code***
sim - Simulation directory for the example, contains the Makefile
uvm_tb/tb - Top level testbench
uvm_tb/tests
uvm_tb/virtual_sequences
uvm_tb/sequences
uvm_tb/register_model
uvm_tb/env - contains the functional coverage monitors described in the cookbook

DUT is a 16550A UART module. The interface mainly contains APB, UART, and some status signals. Agents are agent of different interfaces. 16550A UART recommends that you can search and download detailed SPEC.

DOCS is a simple description of the UART module, which contains some instructions for some registers

Protocol_monitor is an protocol check module.

Environmental integration and Sequence are written under UVM_TB.

Run simulation

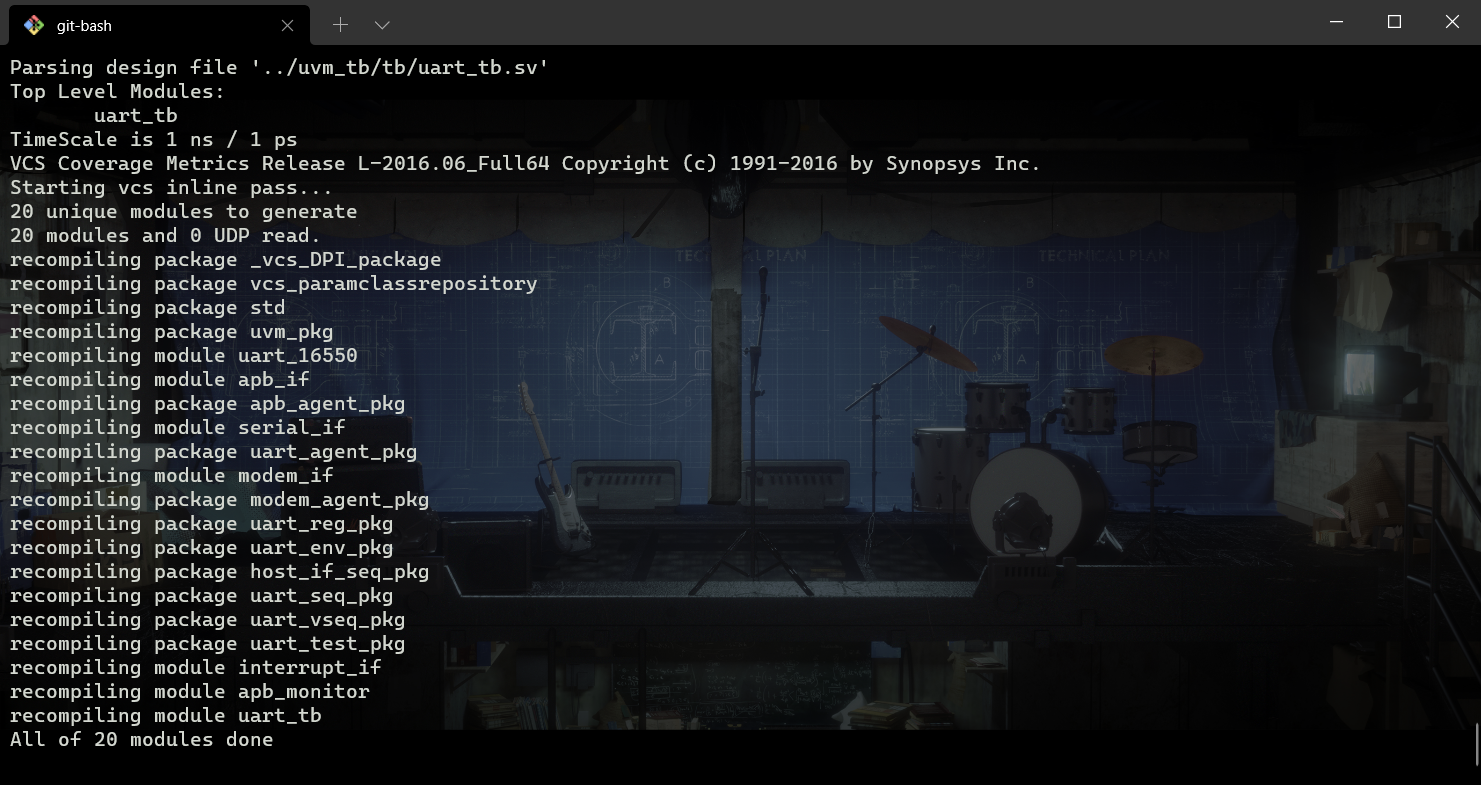

Because it is an example provided by MENTOR, the original Makefile calls Questa. This time I changed the Makefile, run with VCS, and then generate the web report after generating coverage, or use Verdi to view the coverage.

Make all run

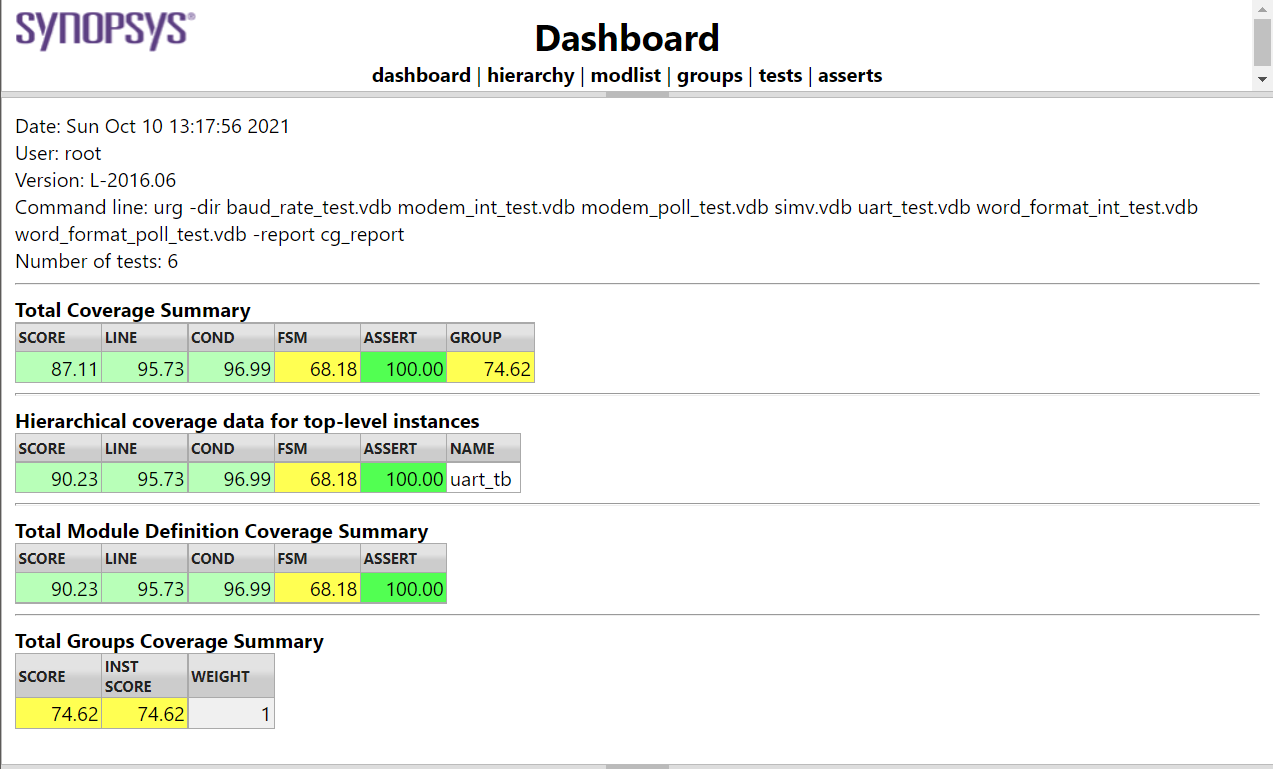

The coverage report is generated in the cg_report directory

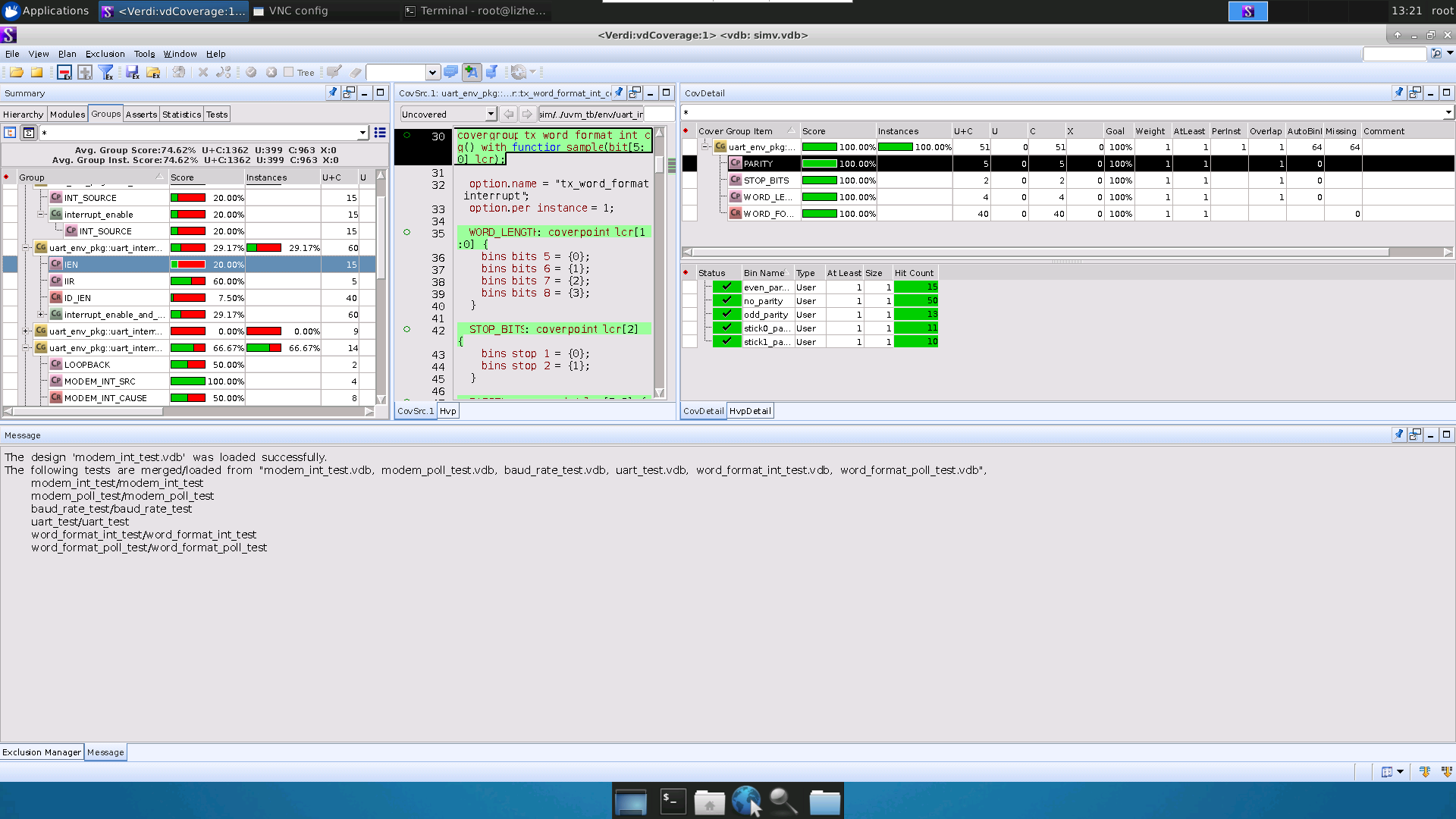

Make Verdi_cg use Verdi to view coverage

The testcase written in the example does not reach 100%coverage. If you are interested, you can try to write a new Case yourself to improve the coverage

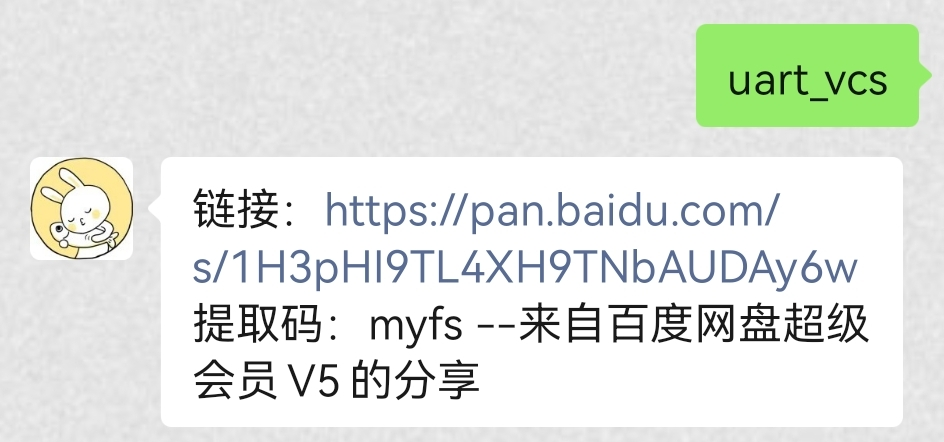

Background replyuart_vcsGet the verification environment

In addition, the simulation EDA tool can also read the following article
