tags: SAP
MSC1N / MSC2N / MSC3N batch enhancement
The main program of these transaction codes is SAPLCHRG, and there are two places on the image interface. It is possible to enhance the reserved sub-screen, where 2 is a sub-screen of a Tab page. Note that the versions may not have this enhancement point.

The enhancement point is ES_BATCH_MASTER, you can see the details, you can see the sample class CL_EX_VB_BM_ADD_SCREEN_FIELDS,
It can be seen that the enhanced sub-screen, the first line below is the sub screen inside the figure above, and the second line below is the top picture of the top, 2999 is a fill empty screen reserved in SaplchRG.

first stepFor MCHA and MCH1 Append, guests, guests (Whether I want to be all, I am uncertain, I may need to refer to the currently configured batch level: When the batch is the material level, the MCH1 is definitely going to append.), The Append standard table field ZZ or YY begins. Alternatively, a self-built table master key is also built similar to MCHA, and the self-built table will be read and save when BADI is enhanced, and this means does not show.

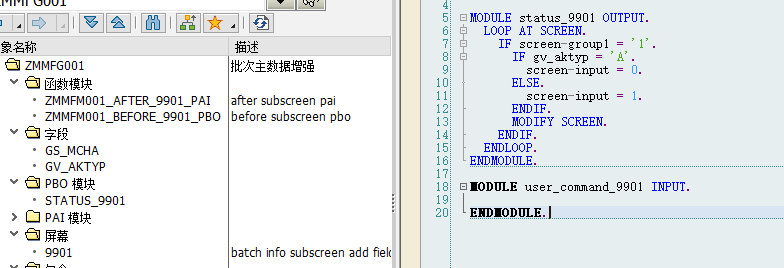

Second stepCreate a function group, the customs screen is placed here, and the general screen is enhanced.

DATA:gs_mcha TYPE mcha,
GV_AKTYP TYPE AKTYP. "is related to the current editing view status
Function ZMMFM001_AFTER_9901_PAI. "The latest value after PAI is selected from this function to the MSC * N master program
es_mcha = gs_mcha.
ENDFUNCTION.
Function ZMMFM001_BEFORE_9901_PBO. "PBO previous value passed from the MSC * n main program to this function group
gs_mcha = is_mcha.
gv_aktyp = iv_aktyp.
ENDFUNCTION.

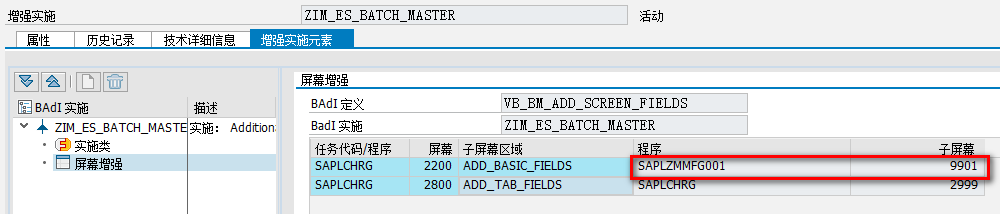

third stepImplementing an enhanced ES_BATCH_MASTER can perform a button in SE19, or SPRO-batch management - the main data.
After implementation, after implementation (implementation class, you can copy the sample class), fill in the screen called the Sub-screen call, is the second step we built screen

Below is a brief description of the method of implementing the class
| AFTER_CUSTOM_SCREEN_PAI |
After custom subscreen PAI processing |
| BEFORE_CUSTOM_SUBSCREEN_PBO |
Customs screen display |
| SAVE_DATA |
Save |
| READ_DATA |
read |
| INITIALIZE_DATA |
Initialize custom data |
| CHECK_DATA_CHANGED |
Check changed custom data |
| SET_TABSTRIP_NAME |
Set the text of the Tab tab in the top of the top |
| BEFORE_CUSTOM_SUBSCREEN_PAI |
After the wire system |
If it is a field directly append's direct Append, the following methods are required, Read and Save have system yourself. If it is a self-built table, you need to process Save_Data and read_data in the table.
METHOD if_bm_add_screen_fields~before_custom_subscreen_pbo.
CALL FUNCTION 'ZMMFM001_BEFORE_9901_PBO'
EXPORTING
is_mcha = is_mcha
IV_aktyp = IV_AKTYP. "h Newly built a display V modification
ENDMETHOD.
METHOD if_bm_add_screen_fields~after_custom_screen_pai.
CALL FUNCTION 'ZMMFM001_AFTER_9901_PAI'
IMPORTING
es_mcha = es_mcha.
ENDMETHOD.
