Linear format formula using UnicodeMath and LaTeX in Word

introduction

Since academia widely uses LaTeX as a document editor for writing papers, many people still use Word to typeset papers, and Word has added the function of using LaTeX grammar to enter mathematical formulas, which enables Word to edit beautiful mathematical formulas. Here, use UnicodeMath to edit the formula in Word.

use

To insert a formula using the keyboard, press Alt+=, and then type the formula. It is control+= under Mac.
In addition, you can also use the keyboard to use keywords and mathematical automatic correction code combinations to create mathematical formulas.
Some complicated situations still require scope symbols. In UnicodeMath, the scope symbol is (). Use space to trigger the corresponding mathematical symbols during input.

Type formula in linear format

Linear format means that mathematical formulas are displayed on one line in the document. Word supports displaying mathematical formulas in two linear formats: Unicode math, LaTeX math
You can choose to create formulas in UnicodeMath or LaTeX format from the "Formula" tab in Word according to your preference.

a/(b+c)

effect:

\frac{a}{b + c}

Compared with all mathematical linear formats, UnicodeMath is the most similar to actual mathematical symbols and the most concise.
You can use the "Math AutoCorrect" code to quickly type most formulas in UnicodeMath format. For example, if you want to align the formula array, you can use @ and & to indicate a space and stimulate the effect, as shown below:

\eqarray(x+y&=z@2x+3y&=2z)<space>

Composite format

\begin{aligned} (116) & x + y & = z \\ (117) & 2 x + 2 y & = 2 z \end{aligned}

enter

E=Mc^2<space>

Composite format

E = M c^{2}

input

a/c

Composite format

\frac{a}{c}

Quick number

Add # and the number you need at the end of the formula to achieve quick numbering.

Reference
https://support.office.com/zh-cn/article/Word-The linear format formula using -UnicodeMath- and -LaTeX--2e00618d-b1fd-49d8-8cb4-8d17f25754f8?ui=zh-CN&rs=zh-CN&ad=CN

Intelligent Recommendation

Convert picture to word formula and word formula to latex

Convert picture to word formula and word formula to latex If you find it useful, welcome to discuss and learn from each other~Follow Me Formula picture recognized as latex Official website address: ht...

How to insert the word "latex formula"

Because I have to write two big reports within 4 days, the time is urgent, I really can’t stand the mathtype, I need to use the mouse to click to find the symbols for a long time, so I want to s...

[LaTeX] Formula writing tool | LaTeX to MathML (for Word) | Formula screenshot to LaTeX | LaTeX learning (partial formula input)

0 Preface At present, the more mature software available for LaTeX input formula is Mathpix And here is a website that is comparable to Mathpix and even surpasses Mathpix in some aspects: https://www....

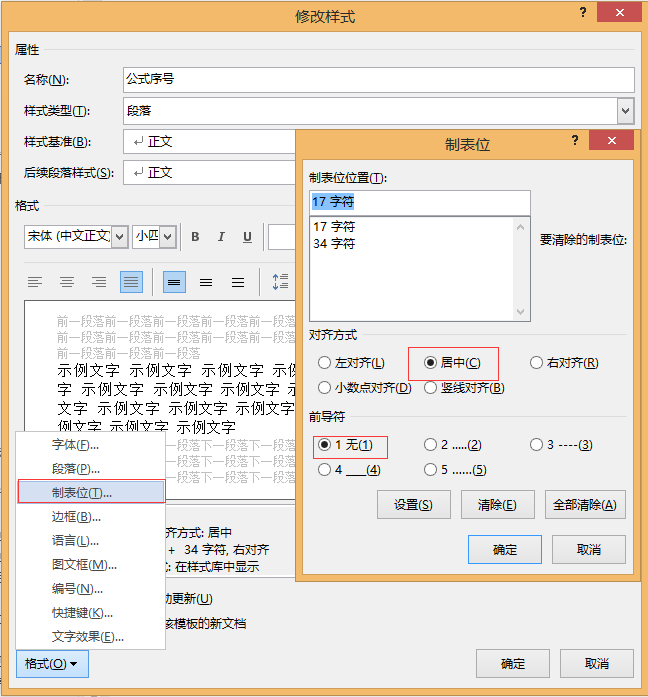

Word formula format layout
